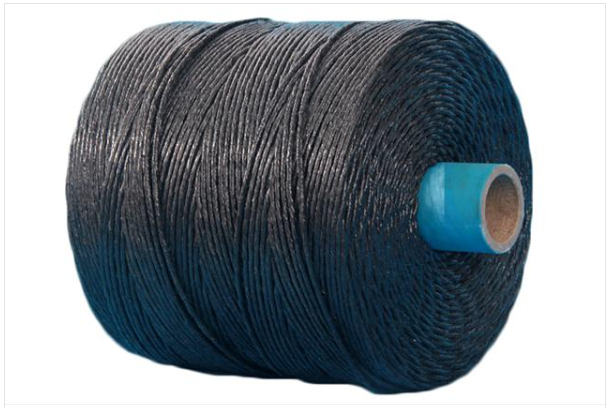

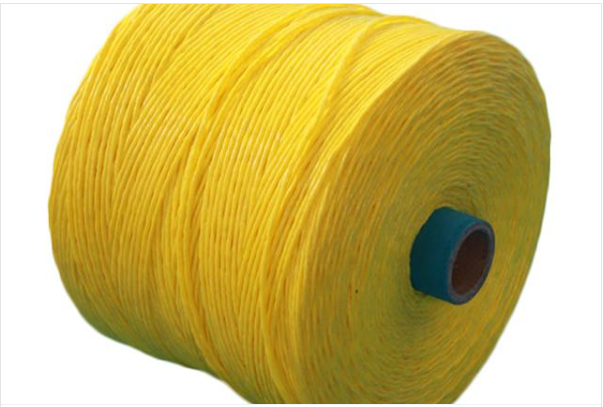

Polypropylene(PP) filler yarn is made of polypropylene with high tensile strength and uniform distribution of net, whcih is used for filling in the cables.
Properties:
| Unit | PP-8 | PP-20 | PP-40 | PP-60 | PP-100 | PP-250 |
| Denier | Denier | 8,000 | 20,000 | 40,000 | 60,000
| 100,000 | 250,000 |
| Tolerance | % | ±10 | ±10 | ±10 | ±10 | ±10 | ±10 |
| Breaking Load | kgf | min.10
| min.25 | min.40 | min.50 | min.100 | min.250 |
| Heat Shrinkage(120°C 20 mins) | %
| Max 8
| Max 8 | Max 8 | Max 8 | Max 8 | Max 8 |
| Elongation | % | min.10
| min.15 | min.15 | min.15 | min.15 | min.15 |
| Melting Point | °C | 165 | 165 | 165 | 165 | 165 | 165 |
| Unit Weight | g/m
| 0.94-1.06 | 2.57-2.89 | 3.41-3.89
| 5.09-5.6
| 11.3-12.9
| 27.5-31.3
|
Tolerance of Unit Weight
| % | ±7 | ±7 | ±7 | ±7 | ±7 | ±7 |
| Gross Weight | kg/roll | 5±1 | 10±2 | 10±2 | 20±2 | 25±2 | 38±2 |
Package:
Inner Diameter
| mm
| 38,58,90
|
Outer Diameter
| mm | 200-500 |
Length of Core
| mm | 250,270,360,450 |
